In modern dentistry, precision and accuracy are paramount—especially in endodontic treatment. Root canal therapy demands exact measurement of the working length of a tooth’s root canal to ensure complete cleaning, shaping, and filling without damaging surrounding tissues. Historically, dentists relied solely on tactile sensation, radiographs, and experience to determine the working length. However, these methods had limitations in accuracy and often required multiple X-rays.
The invention of the dental apex finder has revolutionized the field, offering practitioners a more accurate, efficient, and reliable way to locate the apical foramen and determine the canal’s working length. This advancement has reduced patient discomfort, minimized the number of radiographs needed, and improved the overall success rate of endodontic treatments.
Hamin Dental, a trusted provider of professional dental equipment, offers a wide range of apex finders designed to meet the needs of dental professionals—from beginner-friendly models to advanced, multi-function devices.
This guide will explore everything you need to know about dental apex finders: their history, how they work, types, benefits, buying considerations, maintenance, and future trends.
2 What is a Dental Apex Finder?
A dental apex finder, also known as an electronic apex locator (EAL), is an endodontic device used to measure the length of the root canal by determining the location of the apical constriction (narrowest part of the canal before the apical foramen).
The apex finder works by sending a low electrical current through the tooth and measuring the impedance or resistance between two electrodes—one attached to the endodontic file in the canal and another connected to the patient’s lip. The point where the electrical characteristics change indicates the position of the apical constriction.
3. The Role of Apex Finders in Endodontics
Accurate working length determination is critical in root canal therapy for several reasons:
-
Complete Cleaning: Ensures all infected pulp tissue and debris are removed.
-
Preventing Over-Instrumentation: Avoids damaging periapical tissues and nerves.
-
Preventing Under-Instrumentation: Prevents leaving infected tissue inside the canal.
-
Efficient Treatment: Reduces chair time and number of X-rays required.
With apex finders, dentists can work with confidence, knowing their instrumentation is accurate and minimally invasive.
4. History and Evolution of Apex Locator Technology
The concept of electrical measurement in root canals dates back to the early 20th century, but early devices were crude and unreliable due to limitations in electronics and moisture control.
First Generation
Measured resistance between file and oral mucosa.
Accuracy highly affected by moisture in the canal.
Second Generation
Introduced impedance measurement at a single frequency.
Improved, but still influenced by fluid presence.
Third Generation
Utilized multiple frequencies to calculate position.
Better accuracy even in moist canals.
Fourth and Fifth Generation
Advanced microprocessor-based systems.
High precision regardless of canal conditions.
Additional features like graphical displays, auto-calibration, and integration with endodontic motors.
Today’s apex finders are compact, user-friendly, and highly accurate in clinical conditions.
5. How Does a Dental Apex Finder Work?
Apex finders operate on the principle of electrical impedance measurement. Here’s the step-by-step process:

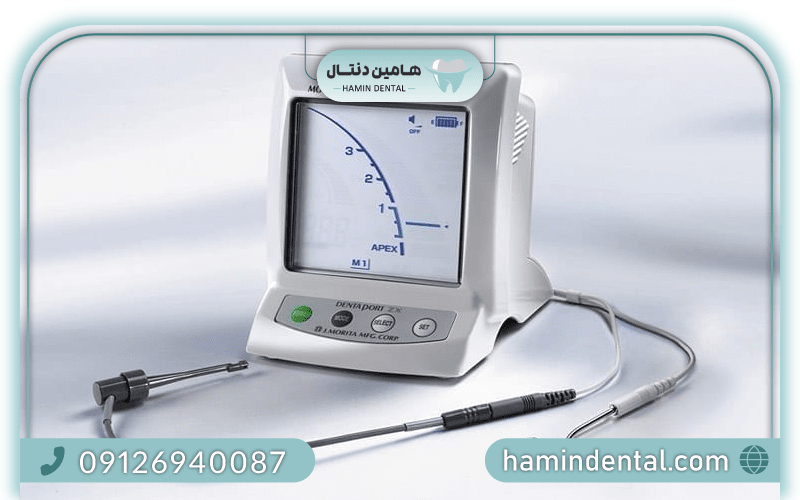

Electrode Connection: One electrode attaches to the patient’s lip (lip clip), and the other connects to the endodontic file.
-
File Insertion: The dentist inserts the file into the root canal.
-
Signal Transmission: The device sends a small alternating current between the electrodes.
-
Measurement: As the file approaches the apical constriction, impedance changes are detected.
-
Display Output: The device visually and/or audibly indicates the file’s position relative to the apex.
Modern apex locators use multiple frequencies and sophisticated algorithms to provide readings even in the presence of blood, pus, or irrigating solutions.
6. Types of Dental Apex Finders

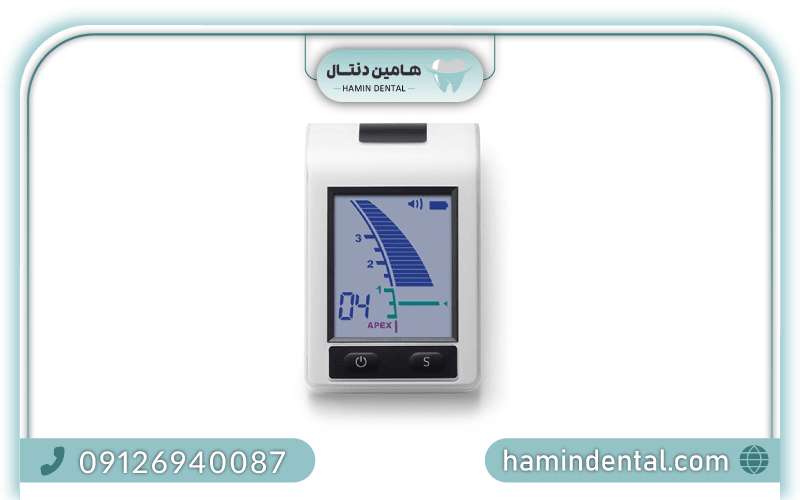

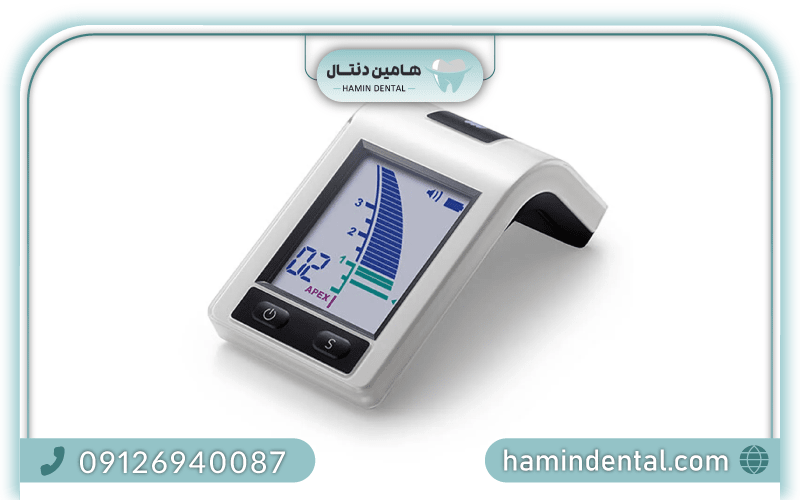

6.1 Standalone Apex Finders
Compact units dedicated solely to working length measurement.
Advantages:
-
Simple operation.
-
Portable and lightweight.
-
Disadvantages:
-
No integration with other devices.

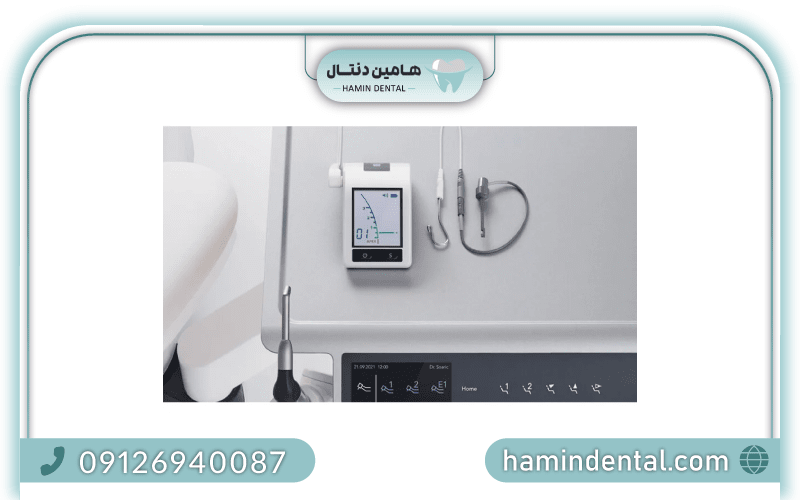

6.2 Integrated Apex Finder-Endo Motors
Combine apex locating with rotary endodontic motors.
Advantages:
-
Streamlined workflow.
-
Automatic file stop at preset working length.
-
Disadvantages:
-
Higher cost.
6.3 Multi-Function Endodontic Units
Include apex locator, endo motor, Apex Finder and Rotary and sometimes pulp tester in one device.
Advantages:
-
All-in-one convenience.
-
Space-saving.
Disadvantages:
More complex, may require more training.
7. Key Features to Look for When Buying an Apex Finder
When selecting an apex finder, consider the following features:
-
Accuracy
Look for devices with proven clinical accuracy and minimal error margin. -
Display
Clear LCD or LED displays with graphical canal representation enhance usability. -
Calibration
Automatic calibration simplifies operation. -
Battery Life
Rechargeable batteries with long run time are ideal for busy practices. -
Size and Portability
Compact, lightweight units improve handling. -
Moisture Resistance
Modern devices should work accurately in wet canals. -
Integration
Consider whether you want a standalone unit or one integrated with an endo motor.
8. Benefits of Using a Dental Apex Finder
-
Reduced Radiographs: Minimizes patient radiation exposure.
-
Speed: Faster than taking multiple X-rays for length confirmation.
-
Patient Comfort: Less invasive and shorter appointments.
-
Versatility: Works in a variety of canal conditions.
-
Precision: High accuracy reduces treatment errors.
9. Clinical Tips for Accurate Readings
-
Always follow the manufacturer’s instructions for electrode placement.
-
Ensure good contact between file and canal walls.
-
Use files recommended for the device’s clip system.
-
Keep canal moist but not flooded to avoid reading interference.
-
Regularly calibrate the device if required.
10. Common Mistakes to Avoid
-
Using damaged or worn files with the device.
-
Ignoring calibration protocols.
-
Over-reliance on apex finder without radiographic confirmation in complex cases.
-
Not replacing worn lip clips or electrodes.
11. Maintenance and Care
To ensure long-term accuracy and performance:
-
Clean the lip clip and file clip after each use.
-
Disinfect according to infection control guidelines.
-
Store the device in a dry, safe location.
-
Replace batteries or recharge regularly.
-
Check cables for wear or damage.
12. Safety and Infection Control
Modern apex finders are designed for safe use, but infection control remains critical:
-
Use barriers where applicable.
-
Autoclave autoclavable parts.
-
Avoid cross-contamination by following clinic hygiene protocols.
13. Comparing Models and Generations
Newer generations of apex finders offer:
-
Greater tolerance to fluids.
-
Better digital displays.
-
Smaller, ergonomic designs.
-
Enhanced integration with rotary motors.
-
Older models may still be functional but might require more X-ray verification due to lower accuracy.
14. Cost Factors and Budget Planning
Price depends on:
-
Device generation.
-
Standalone vs integrated motor system.
-
Brand and warranty coverage.
-
Additional features like Bluetooth connectivity or multi-function capability.
Investing in a high-quality unit from a reputable supplier like Hamin Dental ensures durability and long-term reliability.
15. Future Trends in Apex Finder Technology
-
AI Integration: Automatic adjustment of sensitivity based on canal conditions.
-
Wireless Systems: Cordless file clips for easier handling.
-
Cloud Connectivity: Data integration with patient records.
-
Enhanced Displays: 3D canal visualization.
16. Why Choose Hamin Dental for Your Apex Finder
Hamin Dental provides:
-
High-precision devices from trusted manufacturers.
-
Expert advice for selecting the right model.
-
Reliable after-sales service and technical support.
-
Competitive pricing for quality equipment.
17. Final Buying Checklist
Before purchasing, ensure:
-
Proven accuracy and clinical reliability.
-
Moisture-tolerant performance.
-
Clear display and easy controls.
-
Good battery life or power supply.
-
Warranty and support availability.
Conclusion
The dental apex finder is an indispensable tool in modern endodontics, delivering accuracy, efficiency, and safety in root canal length determination. Whether you choose a standalone unit or an integrated system, the right apex finder will enhance your workflow, improve treatment outcomes, and boost patient satisfaction.
By partnering with Hamin Dental, you gain access to high-quality apex finders backed by expert support, ensuring your investment serves your clinic for years to come.
